Data Access Object (DAO) Data Structure
Our First Parser-Converter Seed With Java Code
Introduction:
Our Intelligent CRM Metadata (ICM) project is a part of our bigger project
"Post Office" (PO)
PO is an end-to-end solution to CRM, Big Data, BI, Analytics, Security, Data Centers plus a number of other
topics. PO is a new way of handling what is done by the big vendors such as
Google, Amazon, the three credit bureaus and big data vendors.
Our Approach is to revolutionize data from being dummy stagnant storage to
an Intelligent Data Services which automates, parses, thinks in abstract, makes
decisions and gives options. Our Intelligent Data Access Object (IDAO) is
memory resident data object which is an intelligent interface between our
XML Database files and any running application.
ICM Big Data Conversion:
Big Data Conversion is not a simple task ; its size and complexity are growing
exponentially. Our ICM project's goal is converting Big Data into XML-DAO
(using Java and SOAP) which is processed faster and stored easier.
This page presents our approach which simplifies Big Data Conversion.
Objectives:
Our approach to Big Data and all its issues, is to replace databases tables
with XML files. Any existing Big Data (structured, unstructured and Legacy
System) must be converted to our XML files structure. To make our goal
attainable, we built a "Seed Framework" with working prototypes
for development teams to use as a start of their target development
(see our First Seed Java Packages and A Running Prototype Section).
Testing the target development can be done using our
"Turn Key" DevOps Editor.

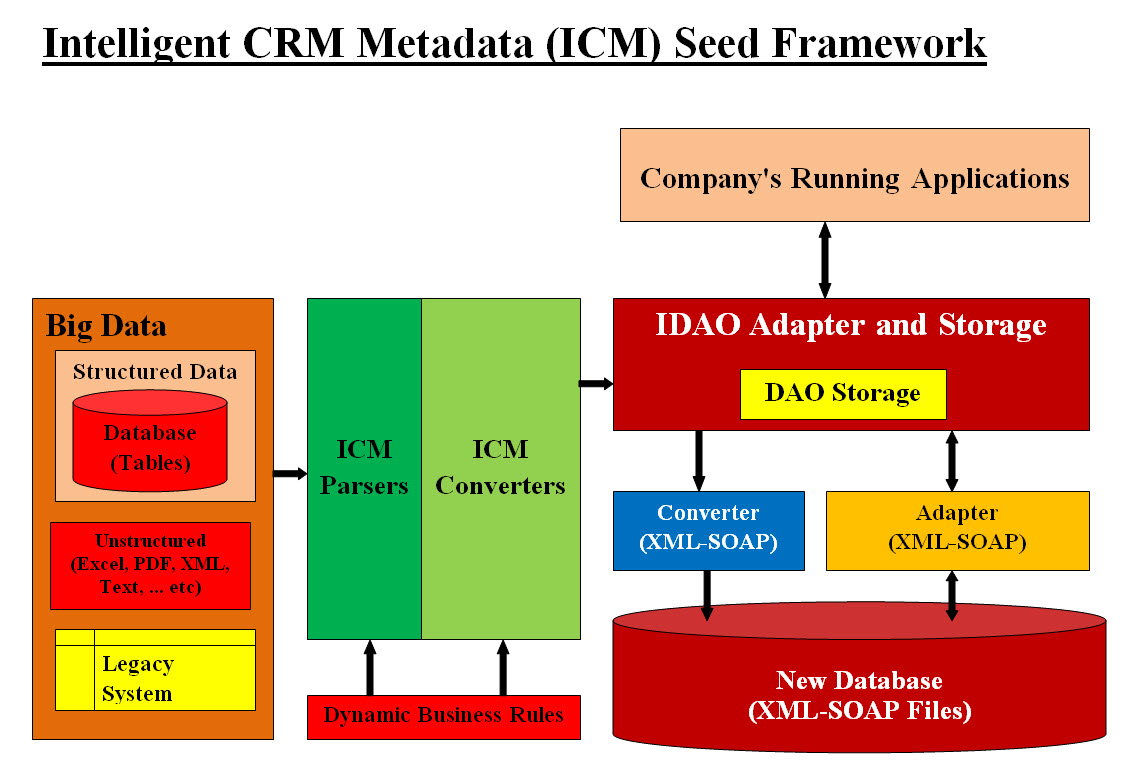

Image #1
Looking at Intelligent CRM Metadata (ICM) Seed Framework diagram (Image #1), our architect-design's objectives are:
•
|
Create new databases with our SAOP-XML files
|
•
|
Must implement the dynamic business rules to address different business rules and buzzwords.
|
•
|
Parsing-converting Big Data from any structured data (databases), unstructured data (excel, PDF, xml, texts, ... etc) and Legacy System
|
•
|
Must be automated
|
•
|
Can be easily tracked-audit trailed-logging and tested
|
•
|
Follow the existing standards such as Java, SOAP, XML, DAO and Design Patterns
|
•
|
Create adapters components to perform the instantiation and the storing of IDAO, DAO and SOAP-XML files
|
•
|
Loosely coupled
|
•
|
Implementing Java technology, Java Data Access Objects, SOAP and XML
|
•
|
Can be easily integrated into any existing databases system
|
•
|
Build any number of different parsers and converters to handle any type of Big Data
|
Our First Seed Java Packages and A Running Prototype
Our First ICM Seed Framework:
We have built our "ICM_DB_TestComponents" project using NetBeans. We had chosen excel
sheets as the project first input data for a number of reasons. First, most companies
have thousands if not hundreds of thousands of excel sheets with critical data which
is a big part of the Big Data dilemma. Excel sheets have no fixed standards in their
creation or format, therefore they bring to our parser and converts the biggest
challenges. Having copies of excel sheets to test our parsers and converter do not
require any special effort as in the case of databases. Also excel formulas can be
used in making our DAO an Intelligent DAO (IDAO). see the LINK
IDAO Architect Page
for adding Intelligence to DAO.
The following are the actual code of our for "ICM_DB_TestComponents" project.
We created our first Parser-Converter Java code and we called "Using Business Rule #1".
The following are our "ICM_DB_TestComponents" project input-out files and Java code files.
We welcome any feedback or comments and our contact email is:
Sam@SamEldin.com
Input Files:
1.
SimpleInputExcelSheet.xlsx
2.
BusinessToken_ID.txt
Java Constant Classes:
1.
MainConstants.java
2.
SOAP_XML_Constants.java
3.
ExcelDAO_Constants.java
Package: Java DAO Classes - unstructured_data_idao:
1.
ExcelCellMap2DAO.java
2.
ExcelColumnMap2DAO.java
3.
JavaCodeGeneratorDAO.java
4.
OneRow_ExcelCells.java
5.
TokenValueDAO.java
Package - unstructured_data_parser:
1.
ColumnCellParserUsingBusinessRule_1.java
2.
Convert2DAO_Class_UsingBusinessRule_1.java
3.
DAO2SOAP_XML_Converter.java
4.
DAO_ClassLoader.java
5.
DAO_DynamicCompilation.java
6.
Excel2DAO_CellParserBusinessRule_1.java
7.
Excel2DAO_Mapper.java
8.
LoadTokenValueArrayList.java
9.
ParsingSOAP_XML_MessagesFile.java
10.
RowCellParserUsingBusinessRule_1.java
Output Files:
1.
SimpleInputExcelSheetDAO.java
2.
SimpleInputExcelSheet_XML.xml
2.
Debugger Tracking of Input and Output
javadoc:
1.
ICM_DB_TestComponents javadoc link
Architect-Design in a Nutshell
Our goal of "ICM_DB_TestComponents" project to automate the parsing-converting
any excel sheet to DAO and SOAP-XML file. It has to perform the following:
•
|
Business key words are stored in a Business Token ID text files to help with
parsing, naming the fields, possibilities and accuracy of how to name the
fields, methods and intelligent parsing and tracking.
|
•
|
Parse the excel sheet horizontally to figure out the DAO field's names, types and values and possible values, percentage of accuracy using the Business Token ID text files.
|
•
|
Using the excel row and column numbers (row * Constant + column) to create an ID index for formulas and functions to track and access.
|
•
|
Parse the excel sheet vertically to figure out formulas and functions, parameters, comments and labels
|
•
|
Parse the excel sheet vertically to figure out tables, rows and comments and label
|
•
|
Create fields (class privet variables) , methods (get() and set())
|
•
|
Create Java DAO
|
•
|
Compile and store the .class file
|
•
|
Create with excel sheet values and store SOAP-XML file
|
•
|
XML file tags are created with structure and ID to help with conversions to
DAO. The size of XML files must be managed and automated for optimizing the two
conversion XML-SOAP and DOA-IDAO
|
|
|
